Nftables 更新 1.0.9
Old Doc Yak #3
Netfilter 项目组在 10/19 更新了 Nftables 1.0.9 版本, 版本定义为 Old Doc Yak #3 (命名来自会说话的山羊为中心的漫画)
目前Debian源已经有 1.0.9 的Deb包, 可以按需下载进行测试. (注意本次版本限制 libnftnl > 1.2.6
)
下面根据官方的 Announce 梳理下具体更新的新功能.
新功能
conntrack超时时间的自定义设定

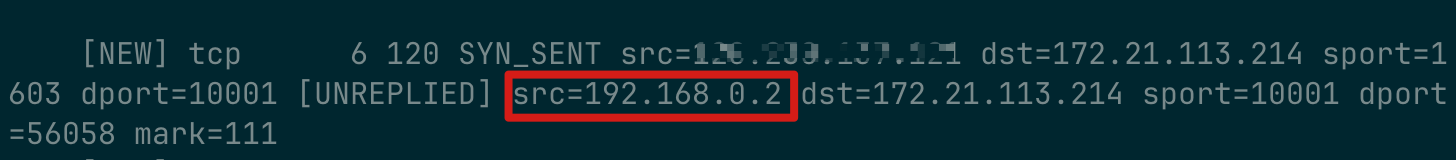

tcp连接的状态有 (conntrack -E -o ktimestam
可以观测)
- SYN_SENT
- SYN_RECV
- ESTABLISHED
- FIN_WAIT
- CLOSE_WAIT
- LAST_ACK
- TIME_WAIT
table inet x {
ct timeout customtimeout {
protocol tcp
l3proto ip
policy = { established: 2m, close_wait: 10s, close: 20s }
# 可根据连接的不同状态设定超时时间
}
chain y {
type filter hook prerouting priority filter; policy accept;
tcp dport 8888 ct timeout set "customtimeout"
}
}
ct timeout set
这个功能在v0.9.1 开始引入,但默认参数为 秒(s)
dnat支持numgen与offset
在之前的写法一般为
tcp dport 443 dnat to numgen inc mod 5 map { 0 : 192.168.0.1, 1 : 192.168.0.2, 2 : 192.168.0.3, 3 : 192.168.0.4, 4 : 192.168.0.5 }:443
现在可以调整为
# 低版本该指令的dnat ip会出现异常,注意对齐版本
tcp dport 443 dnat to numgen inc mod 5 offset 0xC0A80001
允许使用常量作为动态set的key
table inet x {
chain y {
type filter hook input priority 0; policy drop;
udp dport 45378 add @dynmark { 10.2.3.4 timeout 3s : 0x00000002 }
}
}
在多连接情况下检查元素是否存在(网段情况下)
table ip filter {
set test {
type ipv4_addr . ether_addr . mark
flags interval
elements = { 198.51.100.0/25 . 00:0b:0c:ca:cc:10-c1:a0:c1:cc:10:00 . 0x0000006f, }
}
}
检测元素是否存在
nft get element ip filter test { 198.51.100.1 . 00:0b:0c:ca:cc:10 . 0x6f }
版本升级
Debian12 - DEB 更新
## libgmp10 > 6.3.0
wget http://mirrors.ustc.edu.cn/debian/pool/main/g/gmp/libgmp10_6.3.0+dfsg-2_amd64.deb
dpkg -i libgmp10_6.3.0+dfsg-2_amd64.deb
## libnftnl11 > 2.6.2
wget http://mirrors.ustc.edu.cn/debian/pool/main/libn/libnftnl/libnftnl11_1.2.6-2_amd64.deb
dpkg -i libnftnl11_1.2.6-2_amd64.deb
## libnftables1 > 1.0.9
wget http://mirrors.ustc.edu.cn/debian/pool/main/n/nftables/libnftables1_1.0.9-1%2Bb1_amd64.deb
dpkg -i libnftables1_1.0.9-1+b1_amd64.deb
## nftables > 1.0.9
wget 'http://mirrors.ustc.edu.cn/debian/pool/main/n/nftables/nftables_1.0.9-1%2Bb1_amd64.deb'
dpkg -i nftables_1.0.9-1+b1_amd64.deb
